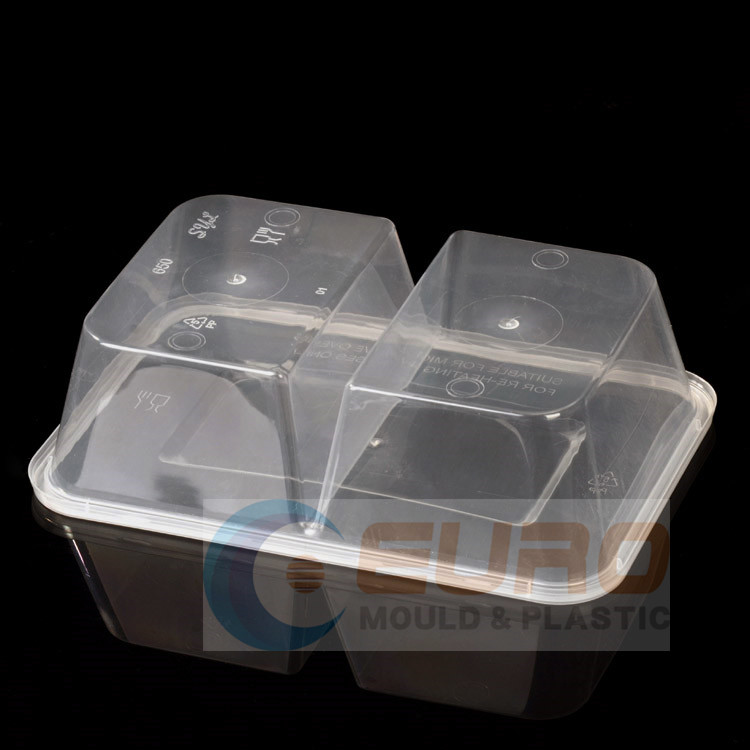

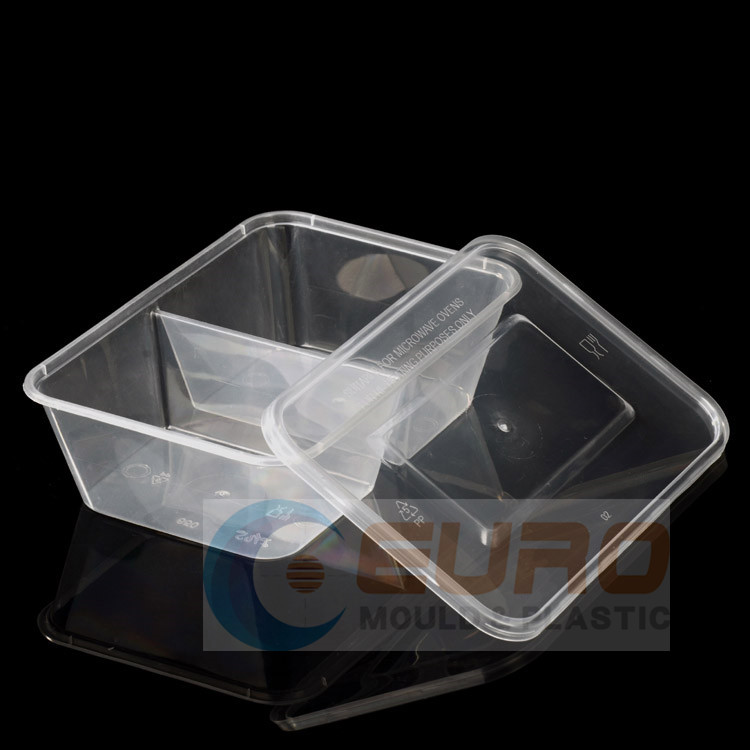

1.Product name:thin wall food container mold
2.Part material: PP
3.Mould cavity: single cavity ~ 4cavity
4.Mould base: P20, S136 (suggest S136 with better strength / hardness)
5.Core & cavity: S136 (ASSAB)
6.Runner: hot runner from DME, YUDO or as per client’s request
7.Mould finish: mirror polish and logo engraved
8.Mould life: 3million ~ 5 million shots
9.Cycle time: 5-8sec/shot
10.IML applicable
11.Optimal design with max. cooling water up to the product surface
12.Interchangeable core & cavity for easier maintenance
13.Wear plates applied for longer mould life
14.Parting line is well protected, and with high speed CNC machining to achieve precision 0.02mm
15.Samples and videos for mould trials available for clients to check
16.T1 time: 50- 55 workings after confirmation on the mould drawings
17.Mould part 2D drawings to be sent with mould shipment, 3D drawings to be sent via mail to clients
